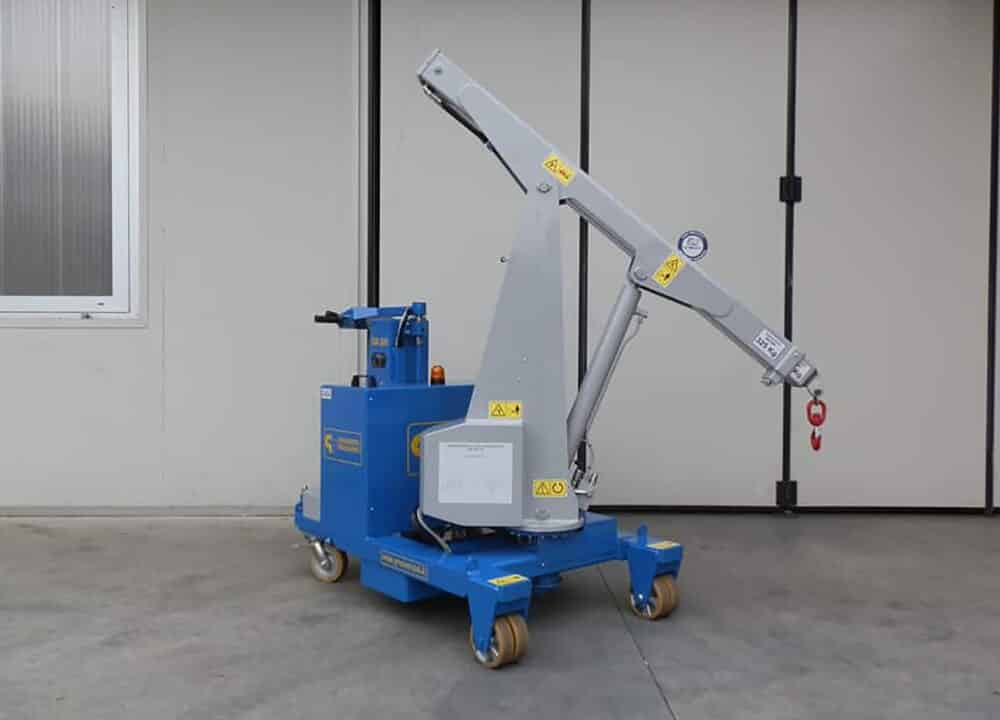

Mini crane GB 300 TR STANDARD
Mobile crane for lifting loads up to 300 kg.
The GB 300_TR STANDARD is the mobile crane for lifting loads designed to lift and carry loads of up to 300 kg.
Thanks to its iper compact dimensions and high lifting capacity this crane lets to work in very limited spaces for making all type of production and maintenance activity.
To lift and carry loads up to 300 kg.
Additional information
| Features | Serie GB 300_TR STANDARD |
|---|---|
| Maximum load capacity | 300 Kg |
| Standard min. hook’s height from the ground | 200 mm |
| Standard max. hook’s height from the ground | 3.200 mm |
| Possibility to extend height up to (option) | – |
| Standard max. telescopic extension | 1.960 mm |
| Capacity at standard max. telescopic extension | 180 Kg |
| Possibility to extend telecopic extension up to (option) | – |
| Capacity at max.telescopic extension (point 7) | – |
| Rotation (option) | 150° |
| Wheelbase | 1.000 mm |
| Dimensions- lenght | 1.400 mm |
| Dimensions- width | 820 mm |
| Dimensions- height | 1.600 mm |
| Adjustable speed from / to | From 0 to 40 m/min |
| Max. surmountable slope ( unloaded ) | 8% |
| Max. surmountable slope ( loaded ) | 3% |
| Front wheels | 4 x Ø 160 x 60 mm |
| Rear driving wheel | 1 x Ø 160 x 80 mm |
| Wheels material | Polyurethane |
| Drive | REAR WHEEL |
| Total weight: | 950 Kg |
| Electric motor power | 1,0 KW / 12 V. |
| Hardened battery (standard) | 200 Ah / 12 V |
| Battery charger on board | 110 / 240 V -50/60 Hz |
| Lead acid battery | – |
| Gel battery | ● |
| Additional autonomy of battery | ○ |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Made in accordance (not certified) to standard UL508 A | ● |
| Certification (issued by Third Party) to standard UL508 A | ○ |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User Manual and technical documentation | ● |
| Possibility to do all movements with max. Load | ● |
