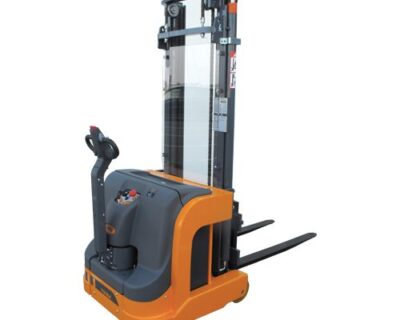

The 715 FS ac is a walk behind counterbalanced stackers with tilted forks ideal for situations when you can’t use forklift trucks with standard forks (due to special pallets, shelves with safety edge) or trucks that pick the loads frontally (because you might endanger the operators or due to lack of training). Equipped with Fem forks which also allow transversal load picking. The manoeuvrability and versatility of this forklift truck render it a valuable asset that can be used by a variety of different operators for different applications.
Ideal for situations when you can’t use forklift trucks with standard forks
until 2.5 t
from 1.590 to 4.140 mm
Made of bent sheet metal to minimise any tensions induced by welds, ensuring maximum mechanical resistance over time. The unique configuration with 3 fixed points of support ensures the best lateral stability. The highly visible mast and the central position of the steering handle ensure optimal visibility for load storage, picking and transport. The battery compartment cover is hinged, facilitating battery top-up and daily and periodical maintenance operations. Particular attention was paid to simplify the access to wear parts so as to minimise the routine maintenance costs.
The OMG machines are fitted with AC control with energy recovery:
releasing the drive control on the tiller.
inverting the running direction can be operated via tiller traction control.
From this control, the operator can manage all truck’s functions and carry out unlimited adjustments for performance optimisation, adapting the machine to any application, while ensuring silent operation and low power consumption at the same time. The 715 FS ac is equipped with a 24 V 375Ah traction battery. The lateral battery extraction system is a standard feature on all versions, very useful for multiple work shifts. With the wo-wa battery charger installed on-board (optional) you can recharge your truck from any socket. The rear opening on the chassis facilitates maintenance, allowing the operator to check or replace the drive wheel without lifting the truck. The mini joystick (finger touch) allows the operator to control the truck by simply moving his finger along the tiller, ensuring precise and smooth load lifting and lowering, without taking his hands off the tiller. The electronic control comes with IP 65 protection rating and is waterproof and dustproof. The tiller head can also be manufactured with IP55 protection rating for protection against dust and water (standard feature for cold store versions). The new polyethylene casings have an innovative simple to use opening system that can be used to gain access to the main components during maintenance
Powerful and reliable AC traction motor, capable of meeting even the most demanding requests in terms of performance, under any conditions. Travel speed controlled directly by the throttle installed on the tiller.
The OMG masts are made of cold extruded profiles, ensuring high resistance to bending and twisting. The lift cylinders are installed outside of the mast profiles and the chains are protected to ensure perfect visibility and maximum safety. Available in simplex, duplex and triplex version with wide free lift. The tilting function comes as standard and facilitates goods picking and storage.
The 3kW powerful and silent lift motor with high torque ration offers high performance with low power consumption. The pumps are highly efficient and very quiet. The mini joystick installed on the tiller (finger touch) allows the operator to lift and lower the forks without releasing the tiller. The truck comes with standard tilting function and can also be fitted with built-in shifter on request.
